Energy Management System
Power Monitoring System
- ION, Modbus (TCP/RTU), OPC DA Servers
- Animated Single Line Diagram
- Historical Data
- Dashboards & Programmable Reports
- Remote Event notification Module (SMS or Notification)
- Open to Integrate any third party device (open protocols)
- Power Quality Events Analysis
- Management System as per ISO50 001/50 006

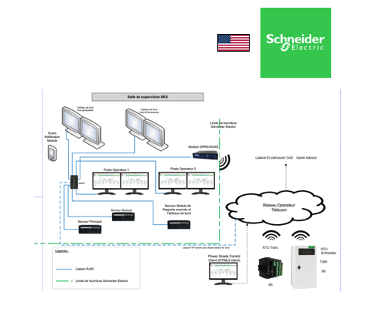

SCADA System
Power Operation
IEC61850 Ed2, DNP3, ION, Modbus TCP/RTU, IEC 60870-5-104, KNX, SNMP v2, Bacnet/IP, OPC UA 1.01 (client), OPC DA v2 2.05a, OPC AE v1
Animated Single Line Diagram with remote Controle Historical Data
Remote Event notification Module (SMS or Notification)
Open to Integrate any third party device (open protocols)
Possibility to associate Power Monitoring Expert
Supervision System Hardware
ThinkEdge SE10-I
Processor: Intel® Atom® 6214RE Processor (1.40 GHz)
Operating System: Windows 10 IoT Enterprise 2021 LTS
Memory: 32 Go DDR4-3 200MHz
Hard Drive: 512 Go SSD & eMMC Memory 64 Go
Integrated Graphics

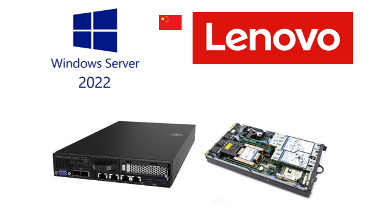

Supervision System Hardware
ThinkSystem SE350
Processor Intel Xeon D-2123IT 4C (2.20 GHz)
Operating System: Windows Server 2022 LTS
Memory: 32 Go DDR4-3 200MHz
Hard Drive: 1200 Go SSD Read Intensive SATA 6Gb NHS SSD
Edge Gateways

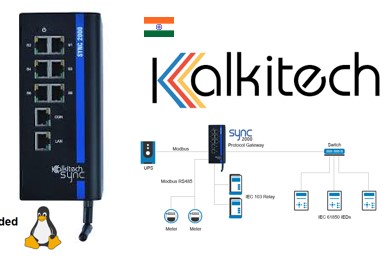

Kalkitech Sync2000
DLMS-Cosem protocol into Open Protocol
Kalkitech Sync2000
6 Serials / 1 Ethernet, Up to 2 Ethernet
IEC 60870-5-101/103/104, DNP3 serial/TCP,
Modbus RTU/ASCII/TCP, IEC 62056-DLMS, IEC
61850, SFTP, SNMP, SNTP
Edge Gateways
Ecostruxure PAS600 / PAS800
Interfaces
1 x RS485 Modbus RTU (32 Devices)
2 x RJ45 Modbus TCP (128 Devices)
1 x Zigbee Wireless (40 Devices)
1 x Embeded Wifi
2 x Digital Inputs
1 x Embedded HMIVersion advancedUp to 5000 Datapoints, 500Measuring Sample/minute, 100 Alarms for remote notifications
Edge Gateways
Ecostruxure T300 – Head Unit HU250
Interfaces
2x RJ45 LAN Port 2kV
2xRJ45 WAN Port 4kV
1xRS485 (RJ45 connector)
2x Modem Slots (4G, Zigbee, Serial)
8 x Digital Inputs
2 x Digital Outputs
1 x Analog Input
1 x Embedded HMI
DNP3 serial & TCP, Modbus RTU,
Modbus TCP, IEC 61850, IEC 60870-5-101
Arc Flash Protection Relay
Arcteq AQ-103
Up to 15 arc flash point sensors
1 High Speed Trip contact (2 ms)
4 Trip Outputs (7 ms)
2 Binary Inputs (1 for Current Interlocking)Light, Light+Pressure Sensorsto be set from 8k LUX to 50k LUX
1 x RS485 Modbus RTU Interface
25 x LEDS
Universal Protection Relay
PowerLogic (ex-Easergy)P3U30
16 Inputs
8 Ouputs
4 x I Current Inputs
4 x U Voltage Inputs
2 x RJ45 or 1 RS485
Aux 48..230V AC/DC
Application Feeder or Motor
PLC
PLC M251
7 extension Modules (I/O architecutre)
14 remote IO Modules
RAM 64MB, 128 MB built-in Flash memory
SD Card for storage 16 Gb
Exécution time 0,3 ms for event and periodic tasks
1 x USB mini B
1 x RS232/485 Interface
2 x RJ45 + 1 RJ45 (2 Ethernet networks)
Modbus TCP/RTU, SMS, DHCP, OPC UA, DNS, Webserver
Condition Monitoring

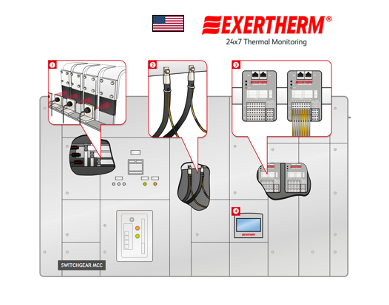

Monitoring of temperature Hotspots in Electrical Installation (MV, LV/ LV MCC)
Sensors providing directly the Delta T variation instead of absolute temperature
Hardwired Sensor for more reliability
Not directly attached to the conductor
Power Meter / Grid Analyser
- Power Meter PM8000/ION74xxA
- 512 samples/cycle
- 512 MB Memory
- Class 0.2S active energy conforming to IEC 62053-22
- Modbus RTU, ION, DNP3, IEC 61850, Modbus TCP/IP DLMS
- IEC61000-4-30 class S or IEC61000-4-30 class A
